BP661 Bale Pro® Series

Chain and Slat Processor

PROCESS that way

BP661 Bale Pro® The BP 661 Bale Pro® is also a great option for cattle operations looking for a durable, well-engineered bale processor. An alternative to the BP 660 Bale Pro®, the 661 Bale Pro® has a slat and chain processing chamber with an offset flail drum. Expand your BP 661 by adding a Feed Chopper™ and Grain Tank.

The Highline® flails efficiently bite into the bale for uniform feed processing. The flails are optimally sized to grab the bale.

The new stepped shaft design is machined from a single length of material vastly improving strength and durability of the drum.

The flails are designed in a spiral formation. This spiral formation ensures that the bale is continuously pulled and processed resulting in consistent feed. Also, the flail drum is digitally balanced for smooth performance and long bearing life.

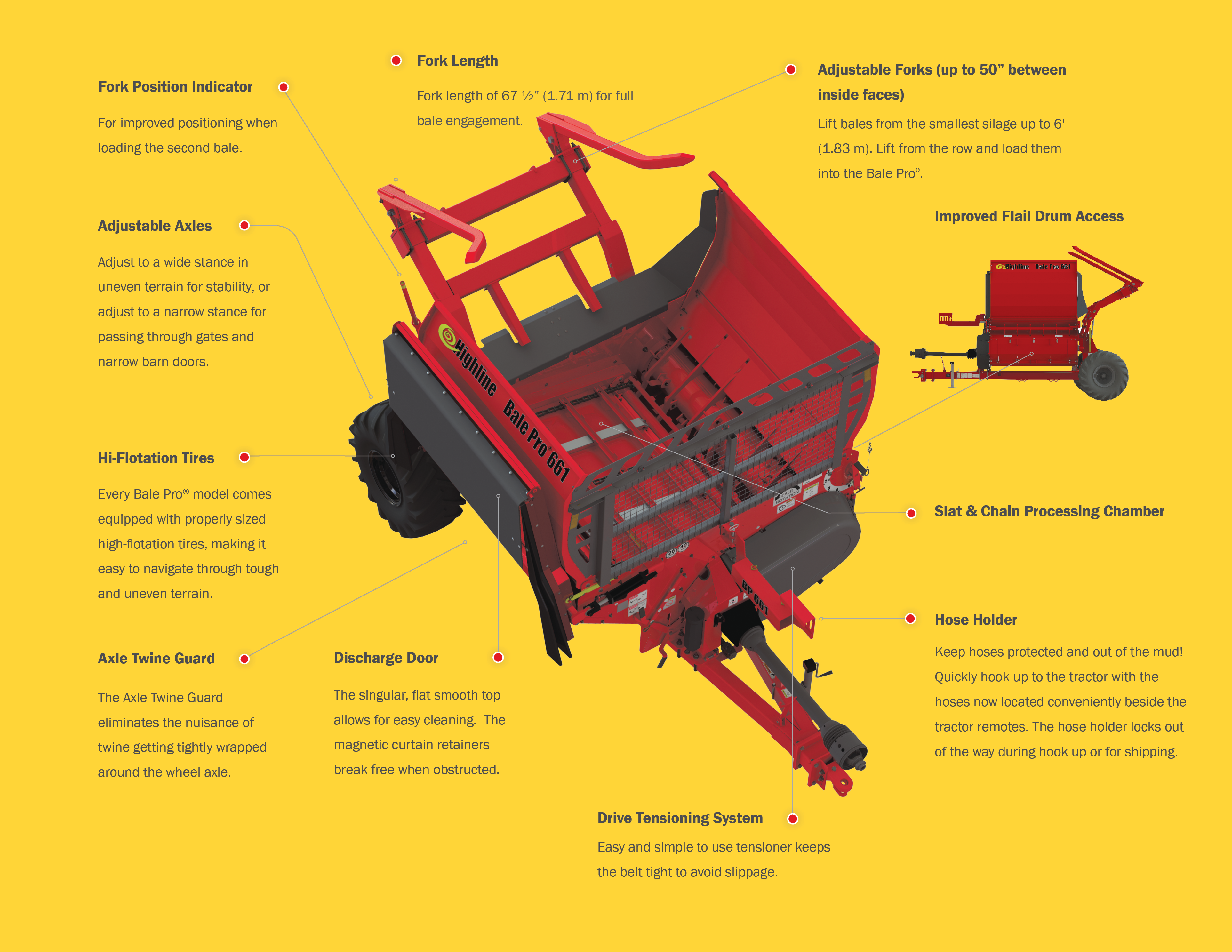

Features & Benefits

Discharge Door
The singular, flat smooth top allows for easy cleaning. The magnetic curtain retainers break free when obstructed.

Rear Deflectors
Standard on all models.

Screen Design
For better material containment.

Side Shields
Contoured to match large bale profiles for improved flail engagement.

Hose Holder
Keep hoses protected and out of the mud! Quickly hook up to the tractor with the hoses now located conveniently beside the tractor remotes. The hose holder locks out of the way during hook up or for shipping.

Drive Tensioning System
Easy and simple to use tensioning keeps the belt tight to avoid slippage

Fork Length
Fork length of 67 ½” (1.71 m) for full bale engagement.

Adjustable Forks (up to 50” between inside faces)
Lift bales from the smallest silage up to 6' (1.83 m). Lift from the row and load them into the Bale Pro®

Fork Position Indicator
For improved positioning when loading the second bale.

**Click photo to expand**

The Grain Tank is a variable speed hydraulic drive feed system that allows for even and consistent flow.

Highline Grain Tank

Controlling Rations - It is vital to ensure that the amount of grain added into a ration is controlled. The amount of grain components in the ration needs to match up with the rumen’s ability to utilize the grains. Increasing the grain components too quickly can result in acidosis and the animals going off feed. The Highline® hydraulic drive feed system precisely distributes the grain or pellets into the hay or straw windrow. The hydraulic drive feed system now allows for stationary processing with precise grain addition – perfect for pre-processing for wagon or mixer feeding!
Control System Display - Easily set your rate for any feeding scenario. Enter the output you want, the calibration value, and start feeding.

BP661 Bale Pro® Quick Specs

ADDITIONAL RESOURCES

A comprehensive library of Highline product information is only a click away!
Visit the Highline Electronic Documentation System for parts and operational documentation.

Parts Manual / Operator's Manual
